Initializing wis2box

Learning outcomes

By the end of this practical session, you will be able to:

  • run the wis2box-create-config.py script to create the initial configuration
  • start wis2box and check the status of its components
  • access the wis2box-webapp, API, MinIO UI and Grafana dashboard in a browser
  • connect to the local wis2box-broker using MQTT Explorer

Note

The current training materials are using wis2box-1.0b8.

See accessing-your-student-vm for instructions on how to download and install the wis2box software stack if you are running this training outside of a local training session.

Preparation

Login to your designated VM with your username and password and ensure you are in the wis2box-1.0b8 directory:

cd ~/wis2box-1.0b8

Creating the initial configuration

The initial configuration for the wis2box requires:

  • an environment file wis2box.env containing the configuration parameters
  • a directory on the host-machine to share between the host machine and the wis2box containers defined by the WIS2BOX_HOST_DATADIR environment variable

The wis2box-create-config.py script can be used to create the initial configuration of your wis2box.

It will ask you a set of question to help setup your configuration.

You will be able to review and update the configuration files after the script has completed.

Run the script as follows:

python3 wis2box-create-config.py

wis2box-host-data directory

The script will ask you to enter the directory to be used for the WIS2BOX_HOST_DATADIR environment variable.

Note that you need to define the full path to this directory.

For example if your username is username, the full path to the directory is /home/username/wis2box-data:

username@student-vm-username:~/wis2box-1.0b8$ python3 wis2box-create-config.py
Please enter the directory to be used for WIS2BOX_HOST_DATADIR:
/home/username/wis2box-data
The directory to be used for WIS2BOX_HOST_DATADIR will be set to:
    /home/username/wis2box-data
Is this correct? (y/n/exit)
y
The directory /home/username/wis2box-data has been created.

wis2box URL

Next, you will be asked to enter the URL for your wis2box. This is the URL that will be used to access the wis2box web application, API and UI.

Please use http://<your-hostname-or-ip> as the URL.

Please enter the URL of the wis2box:
 For local testing the URL is http://localhost
 To enable remote access, the URL should point to the public IP address or domain name of the server hosting the wis2box.
http://username.wis2.training
The URL of the wis2box will be set to:
  http://username.wis2.training
Is this correct? (y/n/exit)

WEBAPP, STORAGE and BROKER passwords

You can use the option of random password generation when prompted for and WIS2BOX_WEBAPP_PASSWORD, WIS2BOX_STORAGE_PASSWORD, WIS2BOX_BROKER_PASSWORD and define your own.

Don't worry about remembering these passwords, they will be stored in the wis2box.env file in your wis2box-1.0b8 directory.

Review wis2box.env

Once the scripts is completed check the contents of the wis2box.env file in your current directory:

cat ~/wis2box-1.0b8/wis2box.env

Or check the content of the file via WinSCP.

Question

What is the value of WISBOX_BASEMAP_URL in the wis2box.env file?

Click to reveal answer

The default value for WIS2BOX_BASEMAP_URL is https://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png.

This URL refers to the OpenStreetMap tile server. If you want to use a different map provider, you can change this URL to point to a different tile server.

Question

What is the value of the WIS2BOX_STORAGE_DATA_RETENTION_DAYS environment variable in the wis2box.env file?

Click to reveal answer

The default value for WIS2BOX_STORAGE_DATA_RETENTION_DAYS is 30 days. You can change this value to a different number of days if you wish.

The wis2box-management container runs a cronjob on a daily basis to remove data older than the number of days defined by WIS2BOX_STORAGE_DATA_RETENTION_DAYS from the wis2box-public bucket and the API backend:

0 0 * * * su wis2box -c "wis2box data clean --days=$WIS2BOX_STORAGE_DATA_RETENTION_DAYS"

Note

The wis2box.env file contains environment variables defining the configuration of your wis2box. For more information consult the wis2box-documentation.

Do not edit the wis2box.env file unless you are sure of the changes you are making. Incorrect changes can cause your wis2box to stop working.

Do not share the contents of your wis2box.env file with anyone, as it contains sensitive information such as passwords.

Start wis2box

Ensure you are in the directory containing the wis2box software stack definition files:

cd ~/wis2box-1.0b8

Start wis2box with the following command:

python3 wis2box-ctl.py start

Inspect the status with the following command:

python3 wis2box-ctl.py status

Repeat this command until all services are up and running.

wis2box and Docker

wis2box runs as a set of Docker containers managed by docker-compose.

The services are defined in the various docker-compose*.yml which can be found in the ~/wis2box-1.0b8/ directory.

The Python script wis2box-ctl.py is used to run the underlying Docker Compose commands that control the wis2box services.

You don't need to know the details of the Docker containers to run the wis2box software stack, but you can inspect the docker-compose*.yml and files to see how the services are defined. If you are interested in learning more about Docker, you can find more information in the Docker documentation.

To login to the wis2box-management container, use the following command:

python3 wis2box-ctl.py login

Inside the wis2box-management container you can run various commands to manage your wis2box, such as:

  • wis2box auth add-token --path processes/wis2box : to create an authorization token for the processes/wis2box endpoint
  • wis2box data clean --days=<number-of-days> : to clean up data older than a certain number of days from the wis2box-public bucket

To exit the container and go back to the host machine, use the following command:

exit

Run the following command to see the docker containers running on your host machine:

docker ps

You should see the following containers running:

  • wis2box-management
  • wis2box-api
  • wis2box-minio
  • wis2box-webapp
  • wis2box-auth
  • wis2box-ui
  • wis2downloader
  • elasticsearch
  • elasticsearch-exporter
  • nginx
  • mosquitto
  • prometheus
  • grafana
  • loki

These containers are part of the wis2box software stack and provide the various services required to run the wis2box.

Run the following command to see the docker volumes running on your host machine:

docker volume ls

You should see the following volumes:

  • wis2box_project_auth-data
  • wis2box_project_es-data
  • wis2box_project_htpasswd
  • wis2box_project_minio-data
  • wis2box_project_prometheus-data
  • wis2box_project_loki-data

As well as some anonymous volumes used by the various containers.

The volumes starting with wis2box_project_ are used to store persistent data for the various services in the wis2box software stack.

wis2box API

The wis2box contains an API (Application Programming Interface) that provide data access and processes for interactive visualization, data transformation and publication.

Open a new tab and navigate to the page http://<your-host>/oapi.


This is the landing page of the wis2box API (running via the wis2box-api container).

Question

What collections are currently available?

Click to reveal answer

To view collections currently available through the API, click View the collections in this service:


The following collections are currently available:

  • Stations
  • Data notifications
  • Discovery metadata

Question

How many data notifications have been published?

Click to reveal answer

Click on "Data notifications", then click on Browse through the items of "Data Notifications".

You will note that the page says "No items" as no Data notifications have been published yet.

wis2box webapp

Open a web browser and visit the page http://<your-host>/wis2box-webapp.

You will see a pop-up asking for your username and password. Use the default username wis2box-user and the WIS2BOX_WEBAPP_PASSWORD defined in the wis2box.env file and click "Sign in":

Note

Check you wis2box.env for the value of your WIS2BOX_WEBAPP_PASSWORD. You can use the following command to check the value of this environment variable:

cat ~/wis2box-1.0b8/wis2box.env | grep WIS2BOX_WEBAPP_PASSWORD

Once logged in, you move your mouse to the menu on the left to see the options available in the wis2box web application:


This is the wis2box web application to enable you to interact with your wis2box:

  • create and manage datasets
  • update/review your station metadata
  • ingest ASCII and CSV data
  • monitor notifications published on your wis2box-broker

We will use this web application in a later session.

wis2box-broker

Open the MQTT Explorer on your computer and prepare a new connection to connect to your broker (running via the wis2box-broker container).

Click + to add a new connection:


You can click on the 'ADVANCED' button and verify you have subscriptions to the the following topics:

  • #
  • $SYS/#


Note

The # topic is a wildcard subscription that will subscribe to all topics published on the broker.

The messages published under the $SYS topic are system messages published by the mosquitto service itself.

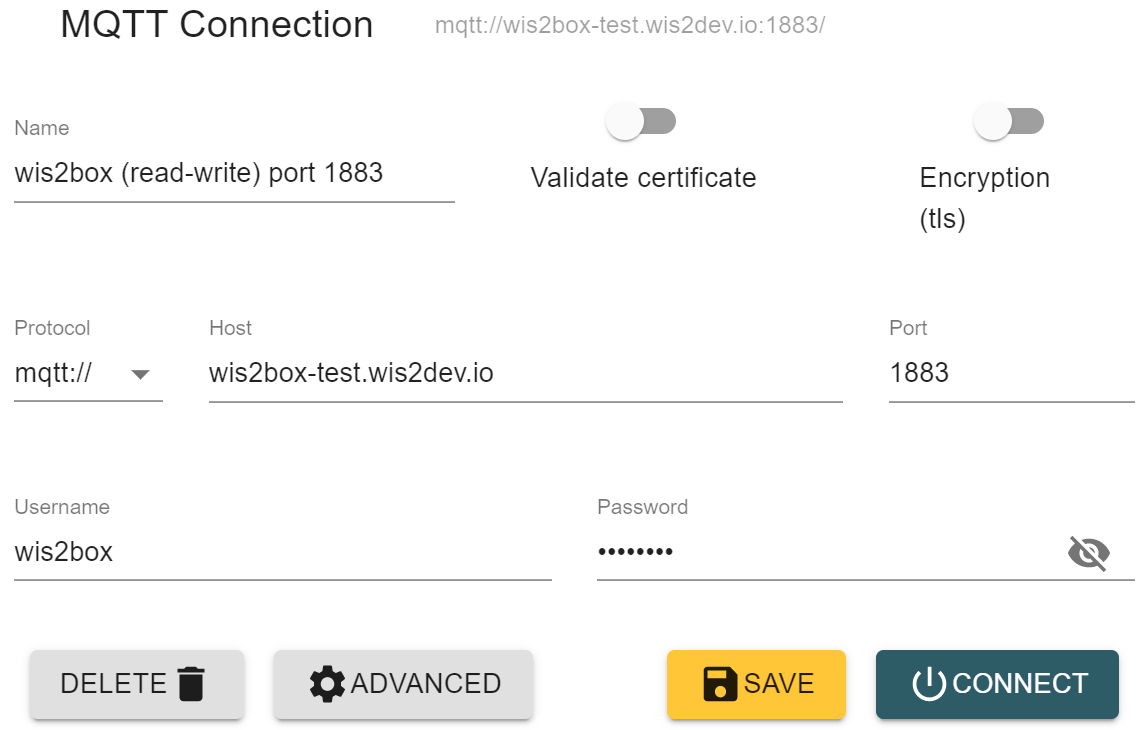

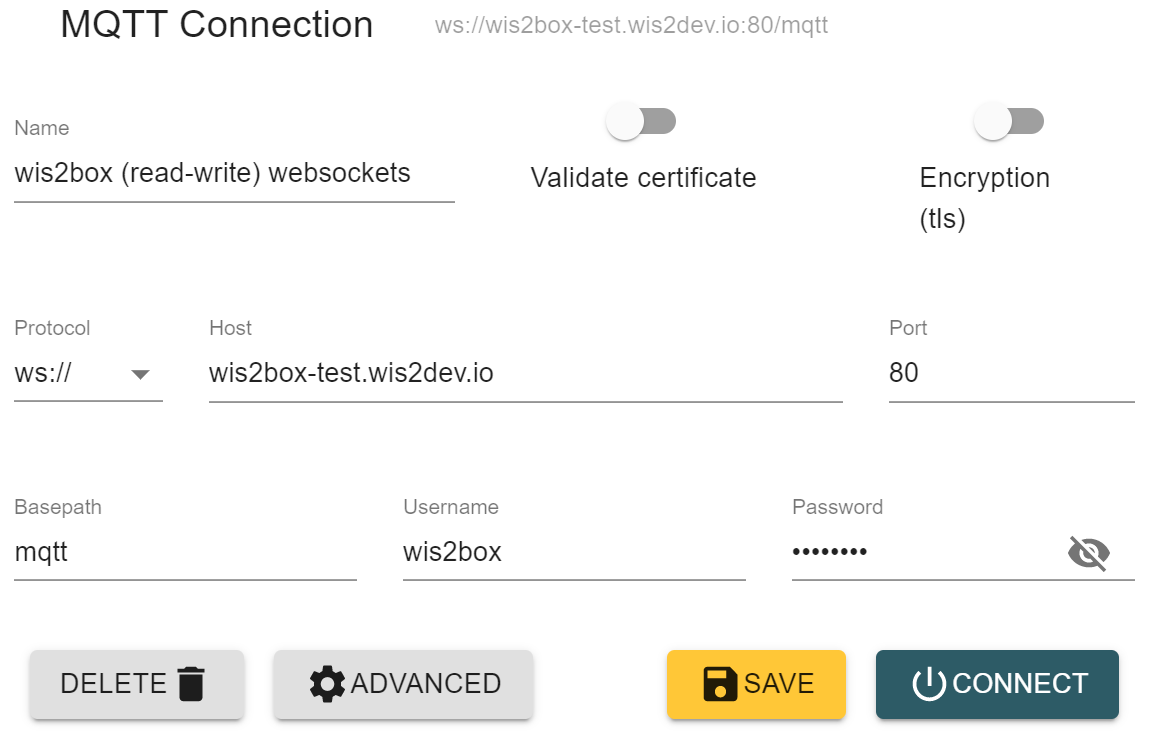

Use the following connection details, making sure to replace the value of <your-host> with your hostname and <WIS2BOX_BROKER_PASSWORD> with the value from your wis2box.env file:

  • Protocol: mqtt://
  • Host: <your-host>
  • Port: 1883
  • Username: wis2box
  • Password: <WIS2BOX_BROKER_PASSWORD>

Note

You can check your wis2box.env for the value of your WIS2BOX_BROKER_PASSWORD. You can use the following command to check the value of this environment variable:

cat ~/wis2box-1.0b8/wis2box.env | grep WIS2BOX_BROKER_PASSWORD

Note that this your internal broker password, the Global Broker will use different (read-only) credentials to subscribe to your broker. Never share this password with anyone.

Make sure to click "SAVE" to store your connection details.

Then click "CONNECT" to connect to your wis2box-broker.


Once you are connected, verify that your the internal mosquitto statistics being published by your broker under the $SYS topic:


Keep the MQTT Explorer open, as we will use it to monitor the messages published on the broker.

MinIO UI

Open a web browser and visit the page http://<your-host>:9001:


This is the MinIO UI (running via the wis2box-storage container).

The username and password are defined in the wis2box.env file in your wis2box data directory by the environment variables WIS2BOX_STORAGE_USERNAME and WIS2BOX_STORAGE_PASSWORD. The default username is wis2box.

Note

You can check your wis2box.env for the value of your WIS2BOX_STORAGE_PASSWORD. You can use the following command to check the value of this environment variable:

cat ~/wis2box-1.0b8/wis2box.env | grep WIS2BOX_STORAGE_PASSWORD

Note that these are the read-write credentials for your MinIO instance. Never share these credentials with anyone. The Global Services can only download data from your MinIO instance using the web-proxy on the wis2box-public bucket.

Try to login to your MinIO UI. You will see that there 3 buckets already defined:

  • wis2box-incoming: used to receive incoming data
  • wis2box-public: used to store data that is made available in the WIS2 notifications, the content of this bucket is proxied as /data on your WIS2BOX_URL via the nginx container
  • wis2box-archive: used to archive data from wis2box-incoming on a daily basis


Note

The wis2box-storage container (provided by MinIO) will send a notification on the wis2box-broker when data is received. The wis2box-management container is subscribed to all messages on wis2box/# and will receive these notifications, triggering the data plugins defined in the datasets.

Using the MinIO UI to test data ingestion

First click on "browse" for the wis2box-incoming bucket, then click on "Create new path":


And enter the path /testing/upload/:


Right-click on this link and select 'save link as' : randomfile.txt, to download the file to your local machine.

Then click on "Upload" and select the randomfile.txt you downloaded from your local machine and upload it to the wis2box-incoming bucket

You should now see the file in the wis2box-incoming bucket:


Question

Did you see a message published on your MQTT broker in MQTT Explorer?

Click to reveal answer

If you are connected to your wis2box-broker, you should note that a message has been published on the wis2box/storage topic:


This is how MinIO informs the wis2box-management service that there is new data to process.

Note: this is not a WIS2 notification, but an internal message between components within the wis2box software stack.

The wis2box is not yet configured to process any files you upload, so the file will not be processed and no WIS2 notification will be published.

We will check the error message produced by the wis2box-management container in the Grafana dashboard in the next step.

Grafana UI

Open a web browser and visit the page http://<your-host>:3000:


This is the Grafana UI, where you can view the wis2box workflow monitoring dashboard. You can also access the logs of the various containers in the wis2box software stack via the 'Explore' option in the menu.

Question

Can you find the error message produced by the wis2box-management container when you uploaded the file to the wis2box-incoming bucket?

Click to reveal answer

You will should see an error message indicating that the wis2box could not process the file you uploaded.

This is expected as we have not yet configured any datasets in the wis2box, you will learn how to do this in the next practical session.

Conclusion

Congratulations!

In this practical session, you learned how to:

  • run the wis2box-create-config.py script to create the initial configuration
  • start wis2box and check the status of its components
  • connect to the MQTT broker on your student-VM using MQTT Explorer
  • access the wis2box-UI, wis2box-webapp and wis2box-API in a browser
  • upload a file to the "wis2box-incoming"-bucket in the MinIO UI
  • view the Grafana dashboard to monitor the wis2box workflow
